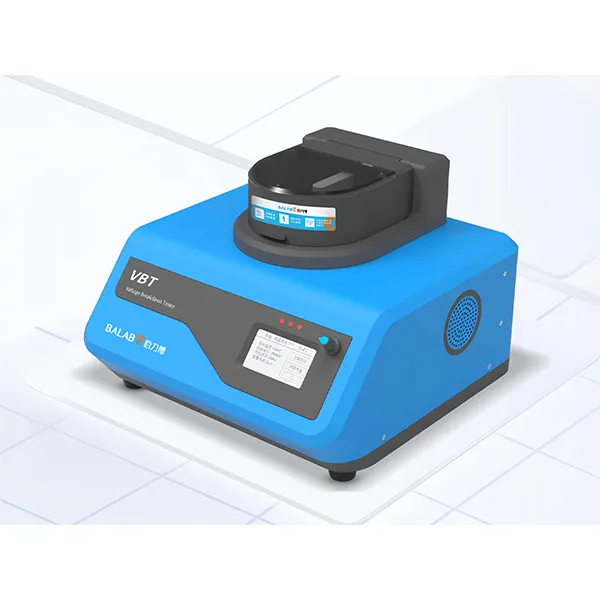

MatMeas VBT50KVPOS Withstand Voltage Breakdown Tester — 1

Overview

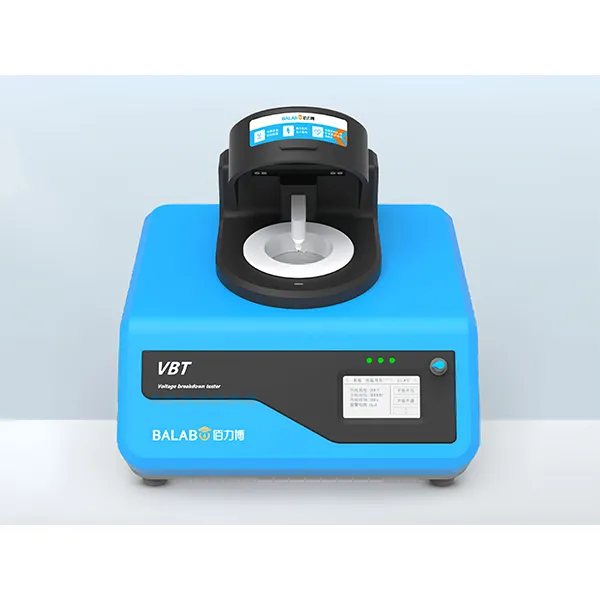

We present the MatMeas VBT50KVPOS Withstand Voltage Breakdown Tester, specifically designed for evaluating the dielectric strength of piezoelectric ceramics. This precision instrument directly measures both the maximum voltage at which breakdown occurs and the safe operating voltage of ceramic materials. It features advanced high-voltage isolation technology to protect both the operator and the equipment during breakdown events. The system integrates a precision oil bath with temperature control up to 180℃, programmable voltage ramping, and real-time current monitoring (1mA measurement range). Widely used in universities, research institutions, and industrial laboratories, the VBT50KVPOS provides essential reliability verification for piezoelectric ceramic development and quality control.

Specifications

Parameter Value
Temperature Range RT- 180℃
Measurement Current 1mA
Temperature Accuracy accuracy ± 3°C
Test Enviroment Silicone Oil
Heating Rate 0-10°C/min
Test Voltage 0 ~ 50 kV
Voltage accuracy ± 5%
Voltage Ramp Rate < 5 kV/s
Voltage Step Increment > 10 V
Sample Size φ < 20 mm, thickness < 5 mm
Equipment size 350 × 325 × 195mm （L x W x H)
Power Supply 220V / 50–60Hz, 480W
Weight 15.50kg
Warranty 1 Year
*If you need to choose other specifications of power supply, please contact  us.

Applications

  1. Piezoelectric R&D
    Evaluating dielectric strength of PZT, lead-free piezoelectrics, and multilayer actuators.
  2. Quality Control
    Batch testing of ceramic components for consistency and reliability in manufacturing.
  3. Academic Research
    Studying breakdown mechanisms and material limitations in dielectric materials.
  4. Aerospace Defense
    Qualification of ceramic materials for high-reliability applications under extreme conditions.
  5. Energy Technology
    Testing insulation materials for capacitors, sensors, and high-voltage power systems.
