Overview

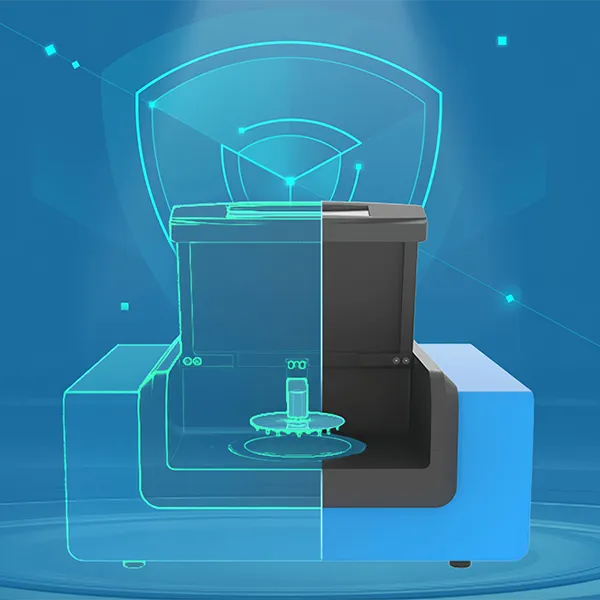

MatMeas SPD20KVPOS Corona High Voltage Poling System is a high-precision poling equipment designed for piezoelectric ceramics and functional thin film materials. The system integrates intelligent monitoring, real-time visualization, safety interlock protection and automatic breakdown shutdown, making it ideal for laboratory teaching and research applications.
Specifications
| Parameter | Value |
| Polarization mode | air corona |
| Number of sample | 1pc |
| Poling Voltage | 0–20 kV |
| Poling Current | 1mA |
| Temperature Range | RT – 180°C |
| Temperature Accuracy accuracy | ±3°C |
| Heating Rate | 3/6/9°C per min |
| Temperature Control | PID Precision Control |
| Minimum Detectable Current | above 100nA level |
| Voltage output accuracy | 5% |
| Sample material | film/ bulk sample |
| Sample Size | φ≤50mm, Thickness ≤10mm |
| Equipment size | 350×300× 160 mm （L x W x H) |
| Power Supply | 220V / 50–60Hz, 300W |
| Weight | Approx. 12 kg |
| Warranty | 1 Year |
Applications
- Piezoelectric Ceramic Manufacturing
- Functional Thin Film Poling
- Electret Material Preparation
- Polymer Functional Modification
- Academic & Research Applications
