Overview

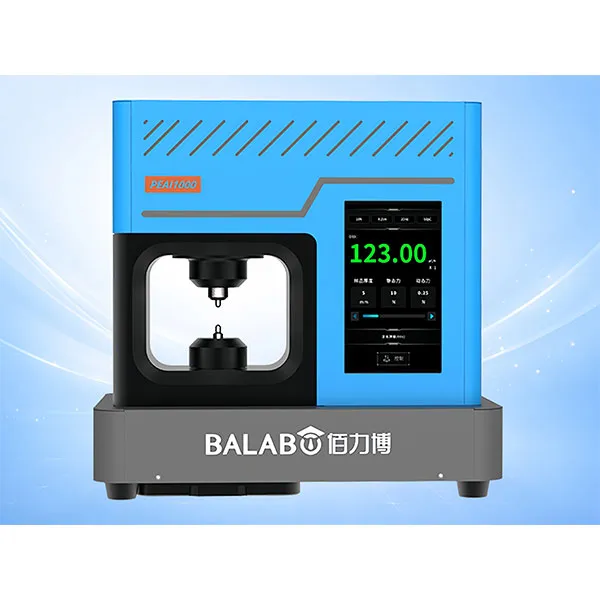

The MatMeas PEAI1000 piezoelectric analyzer is designed for precise measurement of piezoelectric coefficients including d33 and d31 using advanced dynamic measurement technology. The system integrates lock‑in amplifier signal processing to suppress noise and ensure highly stable measurement results. It is widely used in piezoelectric ceramic research, sensor development, materials science laboratories and industrial quality inspection of piezoelectric components.
Specifications
| Measurement Range | 0–2000 pC/N |
| Frequency Range | 110 Hz |
| Minimum Resolution | ±0.1 Hz |
| Dynamic Test Force | 0.05–0.5 N |
| Static Clamping Force | 0–10 N |
| Measurement Speed | Fast / Medium / Slow |
| Measurement Accuracy | ±2% |
| Calibration Frequency | 110 Hz |
| Sample Size | Φ < 40 mm , thickness < 20 mm |
| Device Size | 376 × 217 × 357 mm |
| Power Supply | 220V 50–60Hz |
| Power Consumption | 600 W |
| Weight | 30 kg |
| Warranty | 1 Year |
Applications
- Piezoelectric material research
- Piezoelectric ceramic manufacturing
- Sensor and actuator development
- Aerospace materials testing
- Semiconductor and electronic component laboratories
More Details
- PEAI1000 Piezoelectric Analyzer Features
Dynamic measurement method ensures high accuracy. Lock-in amplifier technology improves signal detection and reduces environmental noise. Integrated mechanical fixture applies consistent dynamic force from 0.05N to 0.5N for reliable measurements. - PEAI1000 Piezoelectric Analyzer Specifications
Measurement range 0–2000 pC/N, frequency 110 Hz, measurement accuracy ±2%, sample size Φ < 40 mm thickness < 20 mm, power supply 220V 50–60Hz.
