Overview

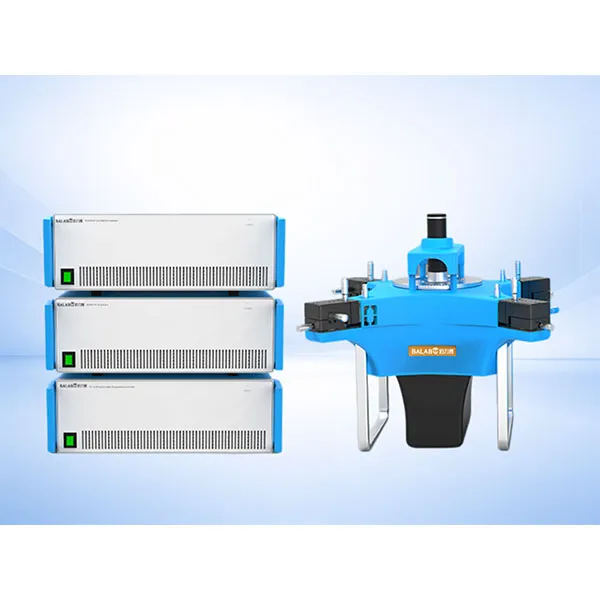

The FMS series ferroelectric measurement spectrometer is designed to analyze electrical properties of ferroelectric materials. The system supports hysteresis loop testing, fatigue measurement, leakage current analysis, polarization and depolarization studies. With integrated high‑voltage amplifiers and precise PID temperature control, the instrument enables stable testing in high and low temperature environments. It is widely used in universities, research institutes and industrial laboratories for advanced ferroelectric material characterization.
Specifications
| Parameter | Value |
| Measurement Channel | Single channel |
| Temperature Range | −160°C to 450°C |
| Temperature Accuracy | ±0.5°C |
| Heating Rate | 0–10°C/min |
| Heating Method | Resistive heating |
| Test Voltage | ±100V / ±10kV |
| Current Measurement Range | 500 fA – 1 A |
| Maximum Load Capacitance | 1 µF |
| Hysteresis Frequency | 1 mHz – 1 kHz |
| Sample Type | Bulk or thin film |
| Sample Size | φ < 20 mm; thickness < 5 mm |
| Power Supply | 220V, 50–60 Hz |
| Weight | 32 kg |
| Warranty | 1 year |
Applications
- Ferroelectric material research
- Thin film and bulk ferroelectric characterization
- Leakage current analysis
- Fatigue reliability testing
- Polarization and depolarization studies
