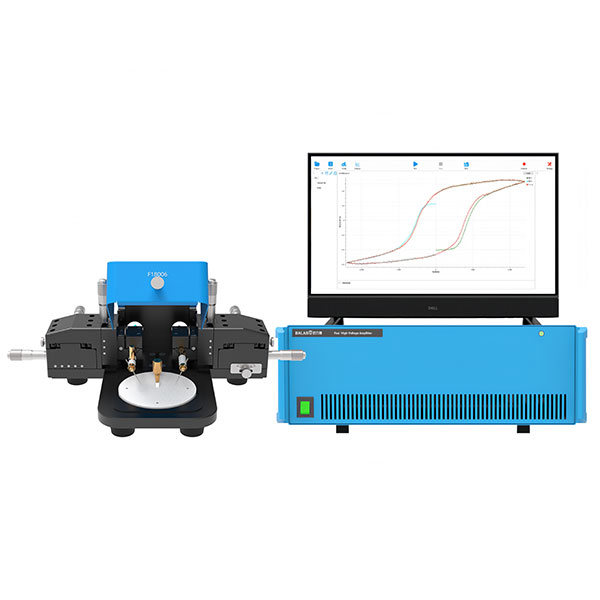

MatMeas FEA1000 High-Precision Ferroelectric Analyzer — 1

Overview

MatMeas the FEA1000 High-Precision Ferroelectric Analyzer – a dedicated measurement system for evaluating ferroelectric thin films. The instrument features a ±100V high-voltage source capable of measuring P-E hysteresis loops to extract critical parameters including spontaneous polarization (Ps), remanent polarization (Pr), and coercive field (Ec).

With a wide frequency range (0.01Hz to 1kHz) and current measurement from 1nA to 10mA, the FEA1000 supports comprehensive ferroelectric, leakage, and pulse switching studies.

It is widely adopted by universities, research institutes, and industrial laboratories for advanced dielectric functional ceramic research.

Specifications

Parameter Specification
Test Voltage Range ±100 V
Measurement Frequency 0.01 Hz ~ 1 kHz
Current Measurement Range 1 nA ~ 10 mA
Minimum Pulse Width 2 μs
Minimum Rise Time 1 μs
Maximum Load Capacitance 1 μF
Output Peak Current 10 mA
Sample Type Thin Film Materials
Power Supply 220 V / 50/60 Hz
Weight 15kgs
Warranty 1 Year

Applications

  1. Ferroelectric Thin Film Research
    P-E hysteresis,fatigue and imprint characterization
  2. Dielectric Functional Ceramics
    Polarization switching and domain dynamics studies.
  3. Memory Device Development
    FeRAM material evaluation and optimization.
  4. Piezoelectric Materials
    Coercive field and polarization behavior analysis.
  5. Leakage Current Characterization
    Time-dependent dielectric breakdown and conduction mechanisms.
  6. Academic & Industrial R&D
    Universities,research institutes,and corporate laboratories
