Overview

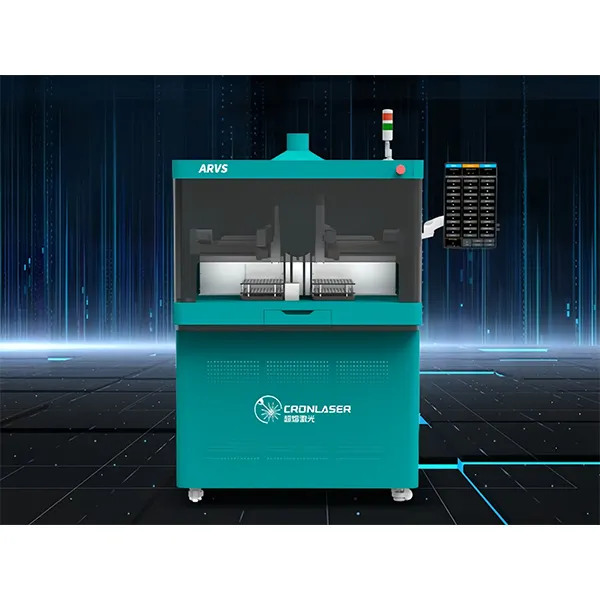

The MatMeas ARVS Series Automatic Vacuum Tube Sealer is designed for high-efficiency glass test tube sealing and bio-sample preservation.
By integrating robotic loading/unloading, rotary vacuum sealing, and 2800 °C HHO flame fusion, the system enables fully automated, contamination-free encapsulation.
Compared with manual sealing, ARVS significantly improves throughput, sealing consistency, and biosafety while reducing operator workload and human error.
It is an ideal solution for laboratories and enterprises requiring standardized, large-batch tube sealing and microbial strain preservation.
Specifications
| Workstation Configuration | 100 Tubes |
| Quartz Tube Dimensions | Φ6mm, Φ7mm, Φ8mm |
| Wall Thickness: | 1 mm |
| Sealing Flame Type: | Hydrogen-Oxygen (HHO) Flame |
| Flame Temperature: | 2800 °C |
| Operating Temperature (Ambient): | 5 – 40 °C |
| Sealing Time (Per Tube): | Adjustable, approx. 10 s per tube |
| Vacuum Level： | < 0.05 MPa |
| Sampling / Handling Method: | Automatic Robotic Arm |
| Compatible Sample Types: | Quartz Tubes, Ampoules, Lyophilization Tubes, Borosilicate Glass Tubes |
| Positioning Accuracy: | ± 0.05 mm |
| Accessories Included: | Sample Racks, Nitrogen Cooling System |
| Power Supply: | 220 V, 50/60 Hz |
| Power Consumption: | 3255 W |
| Equipment Dimensions (L×W×H) | 720 × 11000 × 1600 mm |
| Warranty | 1 Year |
| Ordering Information | ARVS1001 – Vacuum Level < 0.05 MPa |
| ARVS1002 – Vacuum Level < 100 Pa | |
| ARVS1003 – Vacuum Level < 0.01 Pa |
Applications
- Microbial strain preservation
- Pharmaceutical ampoule flame sealing
- Medical thermometer sealing
- One-dimensional material synthesis
- Two-dimensional material encapsulation
