Overview
The MatMeas Fireproof Safety Cabinet is engineered for secure storage of flammable chemicals, combustible liquids, and hazardous materials in laboratory and industrial environments.

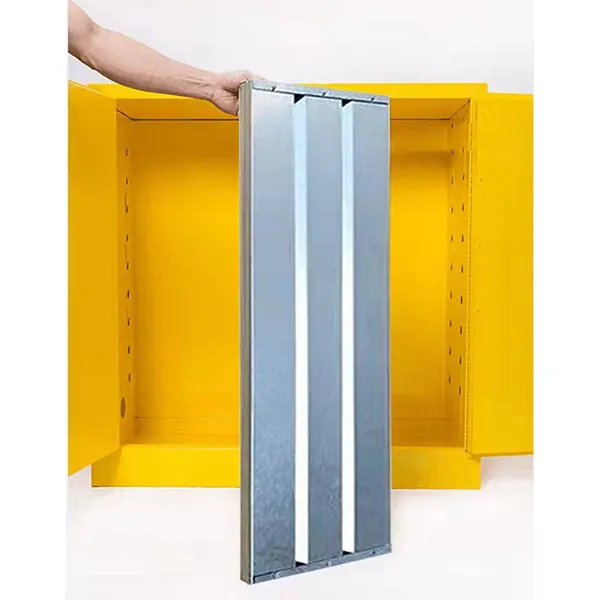

Constructed from 18-gauge double-walled cold-rolled steel with 38mm fire-resistant air insulation layer, this cabinet features a three-point self-latching door system, adjustable galvanized shelves, and dual 2-inch threaded ventilation ports. The leak-proof sump base contains accidental spills while grounding connectors prevent static electricity buildup.

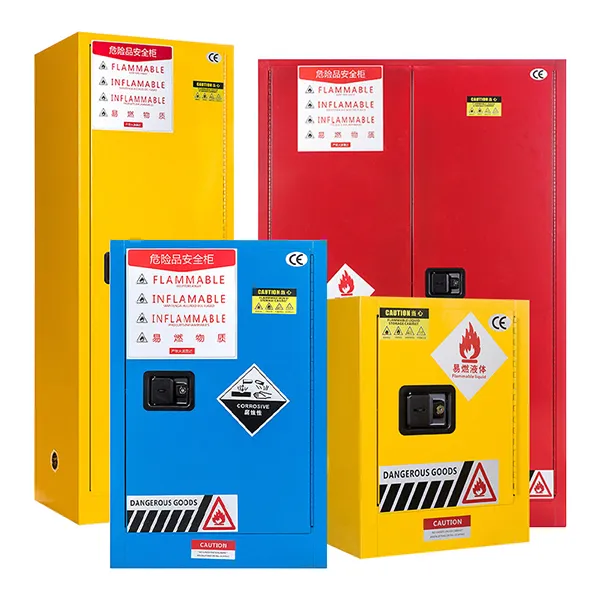

Available in yellow (flammable liquids), red (combustibles), and blue (corrosive acids) configurations, MatMeas supplies OSHA 1910.106 and NFPA Code 30 compliant storage solutions for chemical manufacturers, pharmaceutical factories, and research institutions worldwide.
Specifications
| Parameter | Specification |
| Brand | MatMeas |
| Available Capacities | 4 Gal / 12 Gal / 30 Gal / 45 Gal / 60 Gal / 90 Gal (Customizable) |
| Construction Material | 18-Gauge Double-Walled Cold-Rolled Steel |
| Insulation | 38mm Fire-Resistant Air Gap |
| Door Type | Single Door / Double Door; Manual Close or Self-Closing |
| Locking System | Three-Point Latching with Cylinder Lock |
| Shelf Configuration | 1-3 Adjustable Galvanized Steel Shelves (depending on capacity) |
| Ventilation | Dual 2-inch Threaded Vents with Flame Arresters |
| Spill Containment | Leak-Proof Sump Base (meets EPA/OSHA requirements) |
| Color Options | Yellow (Flammable), Red (Combustible), Blue (Corrosive) |
| Finish | Epoxy Powder Coating (Chemical Resistant) |
| Safety Standards | OSHA 1910.106, NFPA Code 30, CE Certified |
| Grounding | External Grounding Connector Included |
| Warning Labels | High-Visibility "FLAMMABLE" Trilingual Labels |
| Dimensions (45 Gal) | 1650 × 1090 × 460 mm (H×W×D) |
| Weight (45 Gal) | ~100 kg |
| Warranty | 1 Year |
Applications
- Laboratory Chemical Storage
- Industrial Paint & Solvent Storage
- Pharmaceutical Raw Materials
- Petrochemical Processing Facilities
- Academic Research Institutions
- Battery Manufacturing Plants
- Electronic Component Cleaning
